Avator 20e – 35e

Avator 20e – 35e

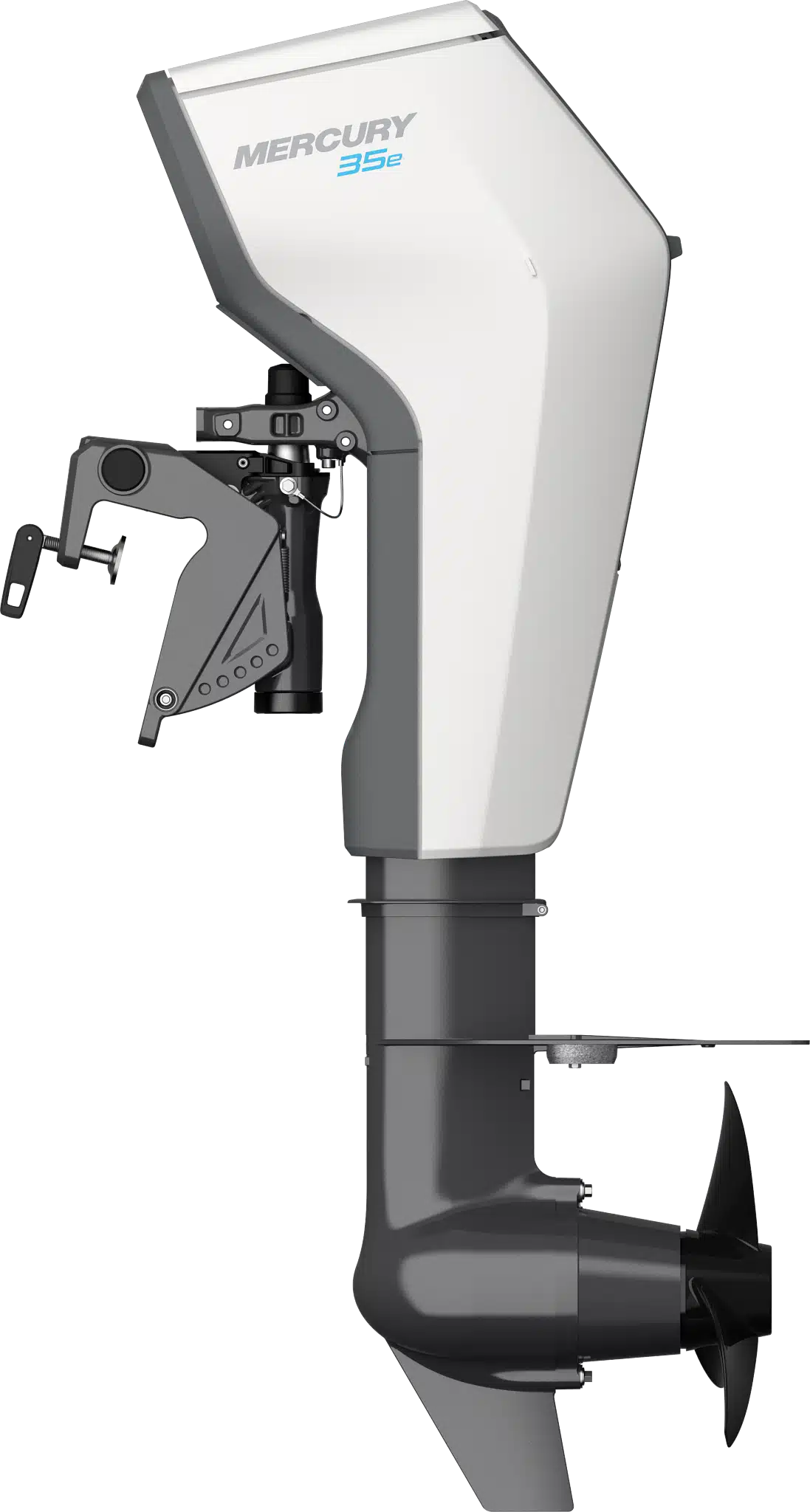

From the morning bite to the evening cruise and every sandbar in between, Mercury Avator™ 20e and 35e electric outboards are engineered to empower your perfect day. Their modular batteries give you the flexibility to optimize your propulsion system for wherever your imagination leads you.

Mercury Brand Brochure

Avator Brochure




Brand

Brand

Mercury

Rise tab
SKU: 762-1-1 Category:

Product Description

Name

Avator 35e

Avator 20e

Battery 2300 Wh – Li ion NMC 2300 Wh – Li ion NMC

Battery IP Rating

IP67

IP67

Battery Type

21166 21166

Battery Weight

48 lbs / 21.7 kg 48 lbs / 21.7 kg
Charger (Standard) 230w 230w
Input Power 4400W 2700W
Rated Prop Shaft Power 3700W 2200W
Rated Voltage

48V

48V
Shaft Length 15\ / 381 mm, 20\ / 508 mm, 25\ / 635 mm 15\ / 381 mm, 20\ / 508 mm, 25\ / 635 mm
Standard Propeller 7P 7P
Steering RC / Tiller RC / Tiller
Total Weight (Excluding Battery & Transom Bracket) 41 lbs / 18.6 kgs 41 lbs / 18.6 kgs
Total Weight Excluding Battery 47 lbs / 21.3 kgs 47 lbs / 21.3 kgs
